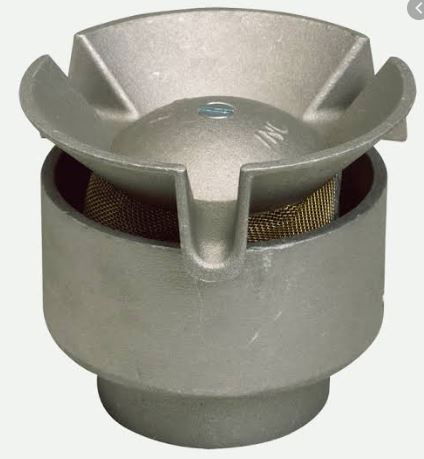

Vent cap/Air vent

Atmospheric updraft vents are installed on the top of storage tank vent pipes on underground and aboveground fuel storage tanks.

Specifications:

• Directs vapor outward and upward in accordance with NFPA 30
• Protects the vent line from debris and insects
• Water resistant rain cap sheds water away from the vent line
• Slip on design with set screws for easy installation
• Internal drain channels water penetration out through weep hole
• CARB 89-12 Approved (1 1/2" and 2" models)

Construction Details:

• Body and cap: Aluminum die cast
• Screens: 40 mesh brass
• BSPT female threaded
• slip on with fastening screws
